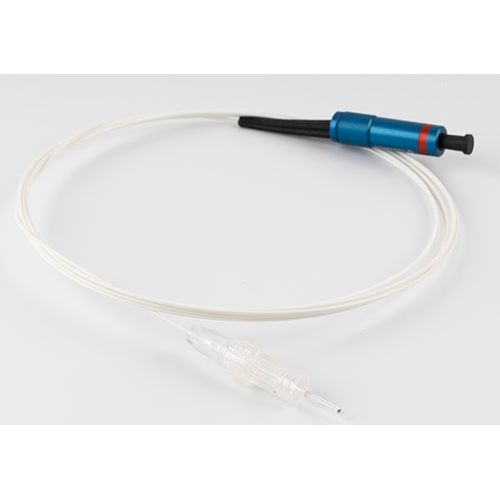

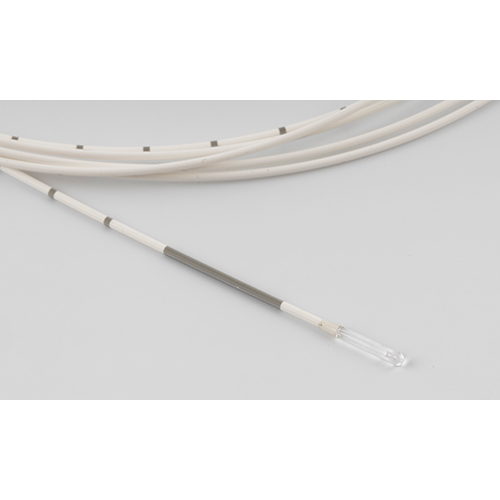

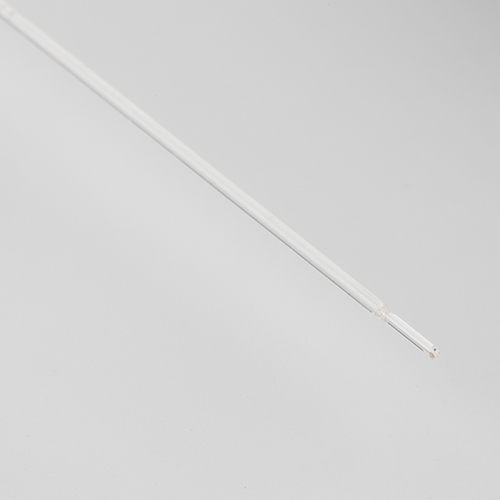

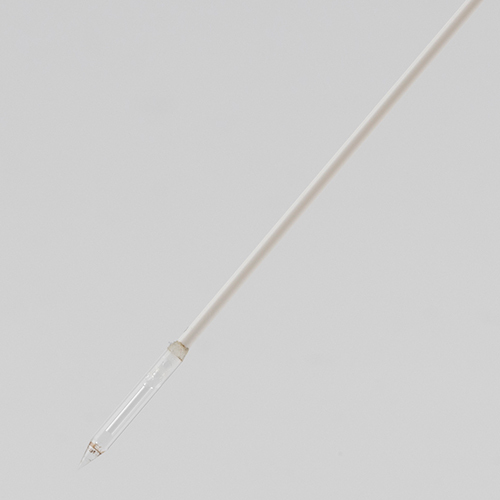

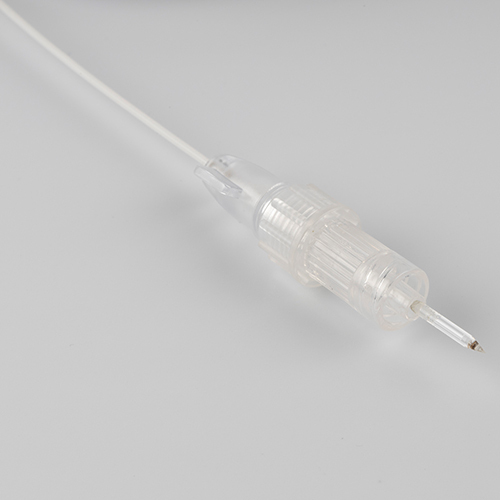

Laser Deliver Cables

• Application
• Other, Medical laser delivery, industrial laser cutting/welding, scientific research, telecommunications

• Armored Material
• Optional stainless steel, polymer braid

• Cable Type
• Laser delivery optical fiber cable

• Color
• Black, yellow, blue, custom colors available

• Conductor Material
• Other, Pure fused silica optical fiber core

• Conductor Shape
• Other, Circular (fiber core)

• Conductor Type
• Other, Optical fiber (single or multicore)

• Connector Color
• Black or blue (others available upon request)

• Core Material
• High purity fused silica or quartz

• Core Number
• Single or custom multi-core

• Diameter
• Core: 200 m - 2000 m; Cable: 2 mm - 6 mm (typical)

• Dielectiric Strength
• 2 kV/mm

• Dimension (L*W*H)
• Varies with configuration (example: 1.5-3.0 mm core, length as specified)

• Features
• High power handling, low loss, high flexibility, excellent beam quality, durable construction, custom length available

• Install Type
• Portable or integrated systems

• Insulation
• Silicone, PTFE

• Insulation Material
• Other, Silicone or PTFE insulation

• Jacket Color
• Other, Black, yellow, blue, or custom

• Jacket Material
• Other, Polymer, stainless steel, or PVC

• Length
• Standard up to 50 meters, customizable as required

• Locking Type
• Standard bayonet or threaded fiber connectors

• Material
• Fused silica, polymer, stainless steel

• Number of Conductor
• Typically 1 (custom multi-core available)

• Operating Temperature
• -40C to +85C

• Product Type
• Large Core Laser Delivery Fiber Cable

• Rated Temperature
• -40C to +85C

• Shield Material
• Optional stainless steel, PVC, or custom materials

• Size
• Core diameter: 200 m to 2000 m or custom

• Storage Temperature
• -55C to +90C

• Tensile Strength
• >60N (typical)

• Usage & Applications
• High power laser transmission, surgical lasers, industrial machining, R&D

• Voltage
• Other, Not applicable (optical/fiber component)

• Weight
• Depends on length and armoring (example: ~50g/meter)
